Specification:
IS-2712 - 1998 Grade W / 3
IS 2712 - 1971 Grade C
Product Description: Fibre Jointing is a consistently uniform, solid run
constructed and resilient product, a price worthy quality of dependable
performance. Its adaptability to many sealing requirement makes this
jointing the most Economical sheet packing choice of plant Engineers and
maintenance men for low service conditions. Red or Graphite finish.
Service: Specially developed for general purpose applications for
use against low pressure steam, water gases and alkalies.
Recommended Max Temperature: 360 oC
Recommended Max Pressure: 25 Bars
STYLE 20
Specification:
IS-2712 - 1998
IS-2712 - 1979 Grade W / 3
IS 2712 - 1971 Grade C
Product Description: Compressed fibre jointing is a consistently uniform
pliable and resilient product. A price worthy quality of dependable
performance, plus adaptability to many sealing requirements makes this
'STEAM JOINTING' the most popular choice sheet packing of plant engineers
and maintenance men. Red and Graphite finish. Metallic and Non-Metallic in
both finishes.
Service: Developed for general purpose applications and this
quality is applicable to a wide range of duties with less severe working
conditions of temperature and pressure.
Recommended Max Temperature: 380oC
Recommended Max Pressure Kg./cm2: 35 Kg / cm2

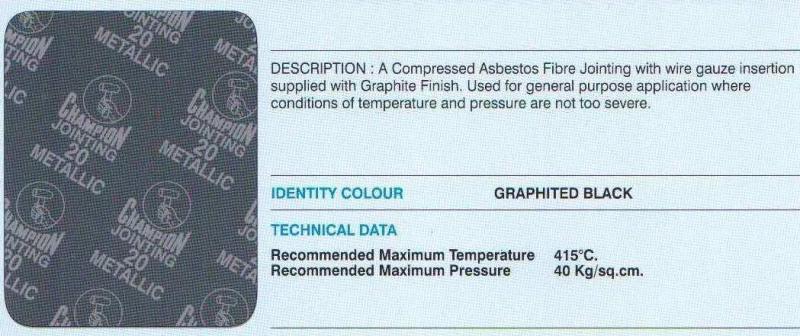

STYLE 20 Metallic
STYLE 39 Red/Gray
Specification:
IS-2712 - 1998
IS-2712 - 1979 Grade O / 2
IS 2712 - 1979 Grade W / 2
IS 2712 - 1971 Grade B / S
BS 2815 - 1973 Grade B
Product Description: Manufactured from quality of Asbestos Fibre and
vulcanized with special rubber compound to meet with the exacting
requirements of modern industry.
Service: Recommended for use against dry and wet steam, water,
gases, alkalies, oil at normal temperatures, chemicals fuels,etc. and
general engineering. CHAMPION Style 39 can also be provided with wire
gauze insertion and graphite finish.
Recommended Max Temperature: 440oC
Recommended Max Pressure Kg./cm2 : 80 Kg / cm2
STYLE 51 High Pressure
Specification:
IS-2712 - 1998
IS-2712 - 1979 Grade W / 2
IS 2712 - 1971 Grade B / S
BS 2815 - 1973 Grade B
Product Description: Manfactured from selected Asbestos Fibre and bonded with
high grade binder compound, this product has a wide range of applications
in the industrial field. Brown / Grey or Graphite finish. Metallic &
Non-Metallic in both finished.
Service: Recommended against steam, neutral non flammable gases,
dyes alkalies, fats, oils, alcohols, motor fuels and such other
engineering services, which do not warrant the use of as High Grade
material such as CHAMPION Style 54 super.
Recommended Max Temperature: 440oC
Recommended Max Pressure Kg./cm2: 80 Kg / cm2
STYLE 54 Super
Specification:
IS-2712 - 1998
IS-2712 - 1979 Grade W / 1
IS 2712 - 1971 Grade A / S
IBS 2815
- 1973 Grade A
Product Description: Manufactured from excellent quality of Chrysotile
Asbestos Fibre and raw materials, the blend being intimately mixed with
heat resisting rubber compounds under special process to ensure maximum
stability against high pressure and temperatures.
Service: Though primarily a super heated steam jointing it is also
recommended against saturated steam, oxygen, petroleum distillates, oils
and fats, fuels, internal combustion engines, hydrocarbons, alcohols,
solvent, dyes, etc. It is popularly used in MARINE ENGINES, electricity
generating sets etc.
Recommended Max Temperature: 550oC
Recommended Max Pressure Kg./cm2: 150 Kg / cm2
STYLE 54 Super Metallic
Specification:
IS-2712 - 1979 Grade W / 1
IS 2712 - 1971 Grade A / S
IBS 2815 - 1973 Grade A
Product Description: A
compressed Asbestos fibre jointing embedded with a strong reinforcement of
steel wire gauze, The super metallic sheet is superior in performance over
other forms of jointing sheets where severe physical conditions of high
pressure and temperature have to be resisted. It is effectively used under
rapidly changing operating conditions of pressure, were vibrations are
experienced and where the flange of gasket joint is narrow.
Service: Used
in diesel exhaust manifold, cylinder head gaskets, internal combustion
engines, air compressors.
Recommended Max Temperature: 600oC
Recommended Max Pressure Kg./cm2: 160
Kg / cm2
STYLE 59 Oil
Specification:
IS-2712 - 1998
IS-2712 - 1979 Grade O / 1
IS 2712 - 1971 Grade A / O
British BS 1832 - 1972
Product Description: A compressed fibre jointing bonded with a sophisticated
compound. This is specialised jointing to withstand the most exacting
demands of oil and petrochemicals plants, solvents, refrigerators, oils,
etc.
Service: Used in pipelines and apparatus of petrochemical fields,
petroleum distillates, oil and petroleum industries. It is also
recommended in industrial processes with high contents of aromatic
substances, sulphurous compounds, chloric hydrocarbons, phenols,
refrigerants, etc. The jointing gives satisfactory services against steam
also.
Recommended Max Temperature: 550oC
Recommended Max Pressure Kg./cm2: 150 Kg / cm2
STYLE 60Acid
Specification:
IS-2712 - 1998
IS-2712 - 1979 Grade A / 1
Product Description: This is a specialized asbestos fibre jointing sheet which
is intimately bonded with an acid resisting compound to withstand the
corrosive action of acids and chemcials.
Service: Recommended for use against hot concentrated organic,
inorganic and mineral acids inculding hydrochloric, sulphuric (oleum) and
nitric acids, under service conditions of temperature and pressure
commonly encountered in chemical industries.
Recommended Max Temperature: 210oC
Recommended Max Pressure Kg./cm2: 150 Kg / cm2
